  • Power: Low Power
  • Frequency: Low Frequency
  • Type: SCM
  • Model Number: E9 mini PC
  • DDR3: 2GB
  • Flash: 8GB eMMC Flash
  • L2 cache: 1 MB
  • USB interface: 2*USB_Host 2.0 connector, 2*extendable USB_Host
  • Audio interface: MIC, PHONE, integrated amplifier interface
  • VGA interface: Up to 1920x1200 resolution
Product Description
LCD interface:40-pin FPC connector
Camera interface:Supports CMOS (stream media)
Expansion connector:2*USB, 17*interruptable IO, 2*CAN, 3*UART, 1*SPI, 1*SDIO, 2*PWM
Module number:E9 mini PC

E9 mini PC Freescale i.mx6 Quad ARM Cortex A9 Development board with 8GB eMMC Flash 2GB DDR3 Free Shipping

E9 mini PC, high-performance computer, onboard powerful i.MX 6 Quad ARM Cortex-A9 application processor


Overview

The E9 mini PC is a high-performance computer based on Freescale\\\'s powerful i.MX 6 Quad ARM Cortex-A9 application processor.


Specifications

  • PCB layer: 8 layers design
  • Size: 100*72*20mm (connectors NOT included)
  • Speaker amplifier output: supports 1W power output (8 loading)
  • Power consumption: < 4W (5V-800mA, standalone startup peak)
  • Boot modes: supports boot from eMMC or Micro SD card
  • Power switch: supports one-key power on/off, and wake up from sleep

What\\\'s on Board

  1. Processor
    • Freescale i.MX6Q Cortex-A9 Quad-core*1GHz
    • 1 MB L2 cache
    • 3D graphics with four shaders
    • Two 2D graphics engines
    • 64-bit DDR3 and 2-channel 32-bit LPDDR2
    • Integrated SATA-II
  2. 2GB DDR3
  3. 8GB eMMC Flash
  4. UART1 interface
  5. LVDS interface
    Dual LVDS 1080P
  6. HDMI interface
    HDMI v1.4, 1080p 30fps high definition digital output
  7. Ethernet interface
    RJ-45 connector, 10M/100M/1000M adaptive
  8. USB interface
    2*USB_Host 2.0 connector, 2*extendable USB_Host
  9. Audio interface
    MIC, PHONE, integrated amplifier interface
  10. 5V jack
  11. Power switch
  12. USB_OTG interface
    USB_OTG 2.0 download interface
  13. Spare external power supply interface
  14. Speaker interface
  15. VGA interface
    Up to 1920x1200 resolution
  16. SATA II interface
    Standard 7-pin SATA II interface
  17. User button
    2 buttons for sound volume control
  18. LRDA infrared receiver
    Supports infrared remote control
  19. LCD interface
    40-pin FPC connector
  20. TF slot
  21. BOOT mode selection
  22. Camera interface
    Supports CMOS (stream media)
  23. Expansion connector
    2*USB, 17*interruptable IO, 2*CAN, 3*UART, 1*SPI, 1*SDIO, 2*PWM

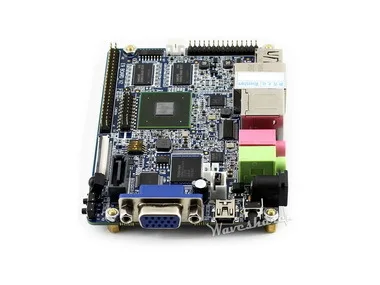

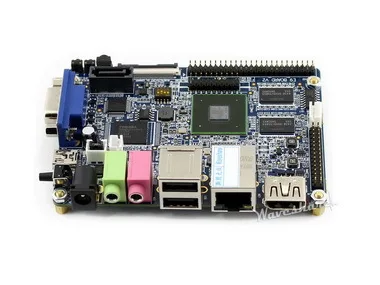

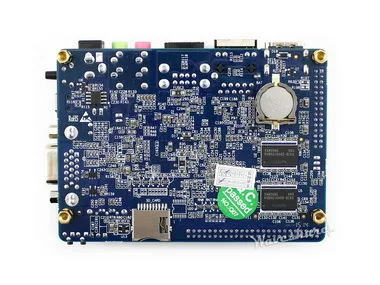

Photos


Development Resources

Data Types Description Download
Documentations Introduction of E9
E9 User Manual
E9 Hardware Manual
Schematics CircuitDiagram, Components Layout, Dimensions
Datasheets Chip Datasheets

Dimensions


Package Contains

  1. E9 mini PC x 1
  2. 5V power adapter x 1
  3. USB type A to Mini-B cable x 1
  4. Serial cable x 1
  5. DVD x 1
