  • Brand Name: DFRobot
  • microphones: 2x MP34DT01-M Digital MEMS
  • 6 slots: to plug digital microphone coupon boards
  • Up to 4: Up to 4 microphone synchronized acquisition and streaming
  • STM32 Nucleo boards: Compatible with
  • Morpho connector (upward and downward): Equipped with
  • Arduino UNO R3 connector: connector (upward) to allow multiple board application
  • RoHS: compliant
  • Place Of Origin: China
  • Development Resources: User manual Schematic Demo code Development software
Product Description

X-NUCLEO-CCA02M1, Digital MEMS microphones expansion board based on MP34DT01-M for STM32 Nucleo

X-NUCLEO-CCA02M1, Digital MEMS microphones expansion board based on MP34DT01-M for STM32 Nucleo

Description

The X-NUCLEO-CCA02M1 is an evaluation board based on digital MEMS microphones.

It is compatible with the Morpho connector layout, and it\\\'s designed around STMicroelectronics MP34DT01-M digital microphones. It has two microphones soldered on board and it is compatible with digital microphone coupon boards such as STEVAL-MKI129Vx and STEVAL-MKI155Vx.

The X-NUCLEO-CCA02M1 allows the acquisition and streaming of up to 2 microphones using the I2;S peripheral and up 4 coupon microphones using both I2;S and SPI. It represents an easy to use and fast solution for the development of microphone based application as well as a starting point for audio algorithm implementation.

Key Features

  • 2x MP34DT01-M Digital MEMS microphones on board
  • 6 slots to plug digital microphone coupon boards such as STEVAL-MKI129Vx and STEVAL-MKI155Vx
  • Up to 4 microphone synchronized acquisition and streaming
  • Free comprehensive development firmware library and audio capture and USB streaming example application compatible with STM32Cube firmware
  • Compatible with STM32 Nucleo boards
  • Equipped with Morpho connector (upward and downward)
  • Equipped with Arduino UNO R3 connector (upward) to allow multiple board application
  • RoHS compliant

Photos

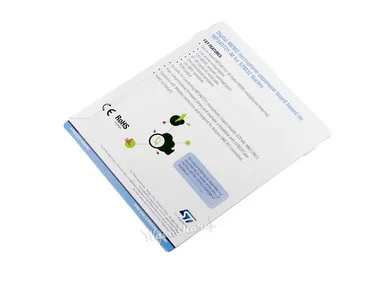

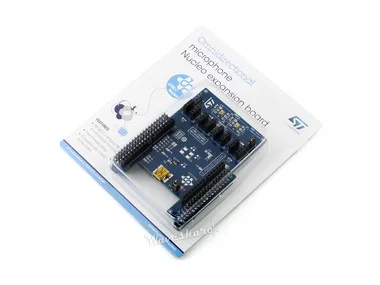

X-NUCLEO-CCA02M1 Packaging

X-NUCLEO-CCA02M1 Packaging Back View

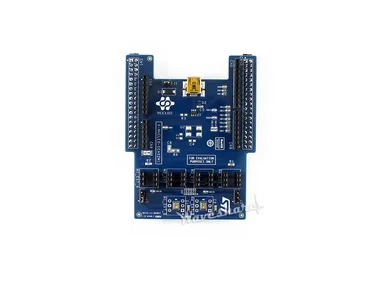

X-NUCLEO-CCA02M1

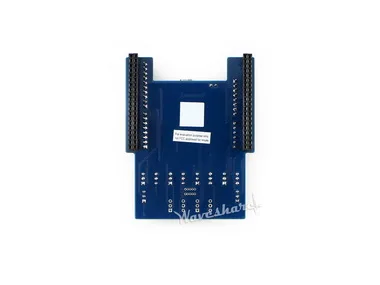

X-NUCLEO-CCA02M1 Back View

X-NUCLEO-CCA02M1

X-NUCLEO-CCA02M1 Back View

What\\\'s Onboard

Block Diagram

Development Resources

  • User manual
  • Schematic
  • Demo code
  • Development software

Wiki : waveshare.com/wiki/X-NUCLEO-CCA02M1

Package Contains

  1. X-NUCLEO-CCA02M1 × 1

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.16kg (0.35lb.)
  • Package Size: 20cm x 18cm x 10cm (7.87in x 7.09in x 3.94in)
