Item specifics
  • Power: Low Power
  • Name: ST
  • Frequency: Low Frequency
  • Type: SCM
  • Model Number: STM32F4DISCOVERY
  • Category: Discovery kit
  • For use with: STM32 F4 series - with STM32F407 MCU
  • Onboard microcontroller: STM32F407VGT6 (STM32, LQFP100)
  • Features: Embedded ST-Link/V2 debugging tool (with SWD connector)
  • Board power supply: Through USB bus or from an external 5 V supply voltage
Product Description
External application power supply:3 V and 5 V
Place of Origin:Guangdong, China (Mainland)
Quality control:Tested one by one before sending
STM32F4DISCOVERY, Discovery kit for STM32 F4 series - with STM32F407 MCU

Description

The STM32F4DISCOVERY helps you to discover the STM32F4 high-performance features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32F407VGT6, it includes an ST-LINK/V2 embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.

A large number of free ready-to-run application firmware examples are available on st.com/stm32f4-discovery to support quick evaluation and development.

Key Features

  • STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package
  • On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
  • Board power supply: through USB bus or from an external 5 V supply voltage
  • External application power supply: 3 V and 5 V
  • LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
  • MP45DT02, ST MEMS audio sensor, omni-directional digital microphone
  • CS43L22, audio DAC with integrated class D speaker driver
  • Eight LEDs:
    • LD1 (red/green) for USB communication
    • LD2 (red) for 3.3 V power on
    • Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
    • 2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current
  • Two push buttons (user and reset)
  • USB OTG FS with micro-AB connector
  • Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing

Photos

aeProduct.getSubject()

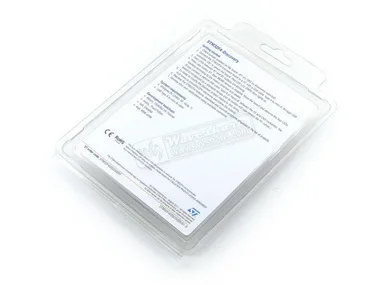

STM32F4DISCOVERY Packaging Back View
aeProduct.getSubject()

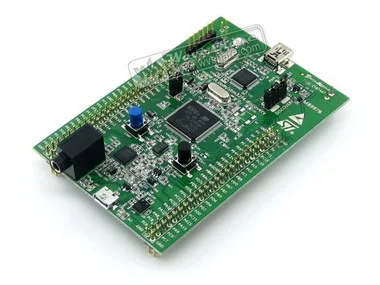

STM32F4DISCOVERY Development Board
aeProduct.getSubject()
STM32F4DISCOVERY Development Board Back View
aeProduct.getSubject()

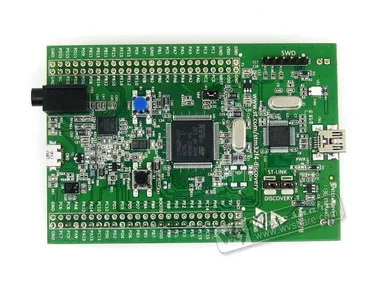

STM32F4DISCOVERY Development Board

What\\\\\\\'s Onboard

aeProduct.getSubject()

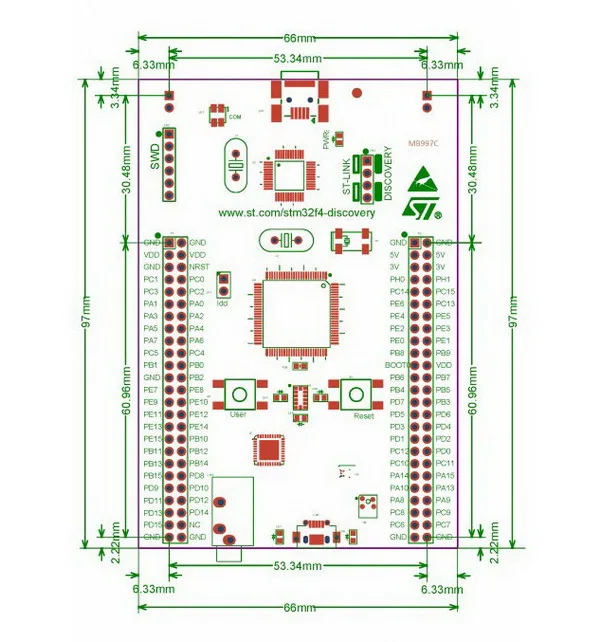

Dimensions

aeProduct.getSubject()

Design Support

For Technical Documentation, Software & Development Tools, Hardware Resources, view the STM32F4DISCOVERY official page on st.com to get more information


Package Contains

  1. STM32F4DISCOVERY × 1
aeProduct.getSubject()

For buyer

aeProduct.getSubject()

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
