Report item
Item specifics
  • Brand Name: DFRobot
  • Application: for arduino
  • Supply Voltage: 7~12V
Product Description
DFRobot 100% Original Turtle 2WD Basic Robot / Mobile Platform / 3PA Smart Car Kit for Arduino, Romeo BLE Controller + DSS-P05 Standard Servo + URM37 Ultrasonic Sensor etc. Support IOS Control
Introduction
  • The Turtle 2WD Basic Kit is a perfect platform to build on and to get started with Ar-duin0 Robotics. With just a few simple steps of assembling the hardware and tuning the software, and you\\\\\\\'ll learn all about Ar-duin0, robotics, sensors, bluetooth communication as well as obstacle avoidance and remote controlling. You can also take it further with your own code to take advantage of the ultrasonic sensor, Romeo All-in-one Bluetooth Microcontroller, IR sensors and LEDs.
  • The Turtle 2WD Mobile Platform is a small, low-cost mobile platform compatible with standard Ar-duin0 microcontrollers. It contains two drive motors, wheels (and rear caster ball), frame and all mounting hardware. It is widely used as self-developed control chasis for Arduino platforms and other control boards. The Turtle 2WD has multiple features such as: two differential drives, near zero turning radius, high-strength aluminum alloy body material, motors and a flexible rubber wheel makes it suitable for indoor flat road surface and flat-platform robot competitions. The top layer includes a standard servo socket and the three optional sensor holder. This three sensor holder fits with our adjustable IR range sensor. The servo can be used for a simple rotation platform, a two degrees of freedom camera holder or even a robotic arm.
  • Thanks to Romeo BLE, the kit can be controllered by APP (IOS). Simply download an APP (GoBLE) to enjoy the control from your IOS device.
Specification

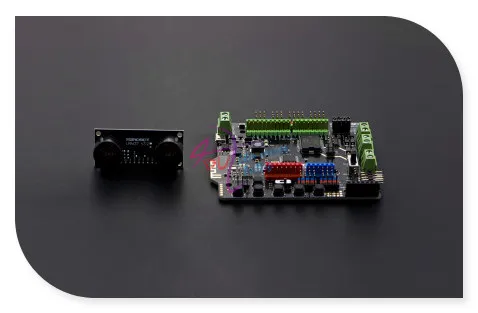

  • Controller: Romeo - BLE
  • Microcontroller: ATmega328P
  • Board: UNO
  • Controller Operating Voltage: 5V
  • Controller Input Voltage (recommended): 7 ~ 12V
  • Ultrasonic Sensor Detecting range: 4cm-3m (3-5m is possible, but depending on situations)
  • Rotation range: 0 - 180
  • Size(Assembled): 165mm(diameter)*128mm
  • Weight: 480g(Excluding battery)
  • Maximum Load: 500g

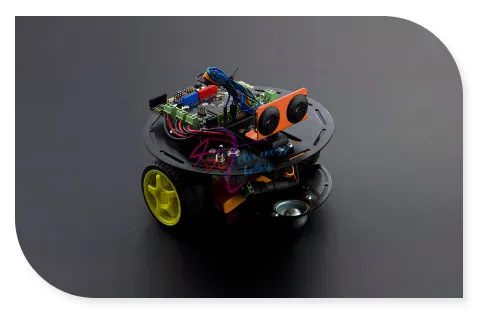

Photos
sui_00
sui_002sui_003sui_004sui_005sui_006

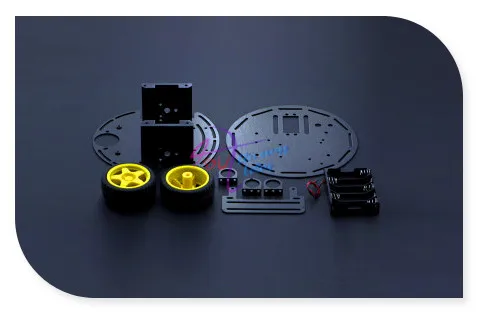

Shipping List
  • Romeo BLE x1
  • DF05BB Standard Servo (5kg) x1
  • URM37 V4.0 Ultrasonic Sensor x1
  • URM ultrasound mounting bracket x1
  • Turtle 2WD chassis x1
  • Infrared proximity switch bracket x1
  • 5xAA battery holder x1
  • PH-2.0 to DC-2.2 adapter x1
  • Screws KIT x1
  • Micro DC Geared Motors x2
  • Motor Wire x1
  • Rubber Wheels x2
  • Jumper Wires 9" F/F (10 Pack) x1
  • Magnet Micro USB Cable 1.2m x1
