  • Brand Name: DFRobot
  • Application: for Raspberry Pi Model B+ / Pi 2
  • Supply Voltage: 6~18V DC
Product Description
100% Genuine Raspberry Pi Multifunction Expansion Shield X300, 6~18V support Bluetooth Microphone input stereo audio output WiFi RTC IR receiver SATA and more for Raspberry Pi Model B+ / Pi 2 /Pi 3

Introduction
  • Expansion Shield X300 is a one of the most cost-effective shield which could apply to Raspberry Pi Model B+ and Raspberry Pi 2 Model B. It integrates a lot of very useful functions such as RTC real time clock; audio input and output; USB hub; Bluletooth, WIFI; SATA interface. With this shield, you can build Raspberry Pi projects more easily and save both time and cost.
  • Compare with Expansion Shield X200. It adds some new features like SATA and BLuetooth, but it cancels HDMI and VGA video port. It is more suitable for project.

Photos
sui_00sui_02sui_03sui_04sui_5

Specification
  • Input Voltage: 6V to 18V DC converted to 5V, 4A via step-down DC/DC converter to power the Raspberry Pi
  • SATA: Allows you to connect SATA devices to your Raspberry Pi
  • Audio:
    • 3.5mm MIC in jack
    • 3.5mm stereo audio jack
    • SPDIF output
    • Audio IO connector (Microphone input and stereo audio amplifier 3.3Wx2)
  • Wireless:
    • WiFi (IEEE 802.11b/g/n) with external antenna
    • IR sensor (38KHz)
    • Bluetooth serial communication
  • USB Storage: Self-powered USB hub with 3 ports
  • Real-time clock (RTC): Based on DS3231SN with included CR2032 battery
  • Misc:
    • Power output socket;
    • Camera flex slot so camera can still be used with the expansion board attached
    • DIP switch to remove connection from RPis pin header
    • Directly connected on top of the Raspberry Pi using the board GPIO header pins
    • No wiring nor soldering is required
    • Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards
    • Suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B Dimensions: 85 x 56mm (Same size as Raspberry Pi)
  • Note: When you power Raspberry Pi with the shield power resource, please don\\\'t power it again via the Micro-USB port, it will damage the board!



X300_860p5



Documents
  • Driver Download and User Manual: //suptronics.com/Xseries/x300.html

Shipping List

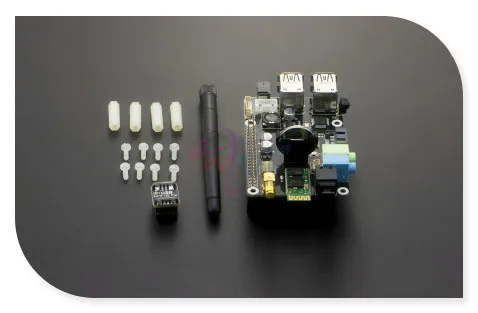

  • X300 Raspberry Pi expansion board x1
  • USB adapter x1
  • 2.4GHz WIFI antenna x1
  • nylon spacers (M3 x 20mm) x4
  • nylon screws (M3 x 6mm) x8
