Item specifics
  • Brand Name: DFRobot
  • Application: for Arduino Leonardo most Nano
Product Description

DFRobot 100% genuine Dreamer Nano V4.1 Micro controller board, ATMEGA 32U4 embedded with Micro USB Compatible with Arduino Leonardo most Nano shield

Introduction
  • The Dreamer Nano V4 is a surface mount breadboard embedded version of the ATMEGA 32U4 with integrated Micro USB. It has everything that board for Arduino Leonardo has (electrically).Physically, it is just missing power jack to save space.
  • Using the ATmega32U4 as its sole microcontroller allows it to be cheaper and simpler. Also, because the 32U4 is handling the USB directly, code libraries are available which allow the board to emulate a computer keyboard, mouse, and more using the USB-HID protocol!
  • The Dreamer Nano v4 is compatible with most Nano shield in the market. It\\\\\\\'s suitable for projects that require a compact size controller system.
  • Note: The pins supporting I2C/TWI is located at Digital Pins D2(SDA) and D3(SCL).

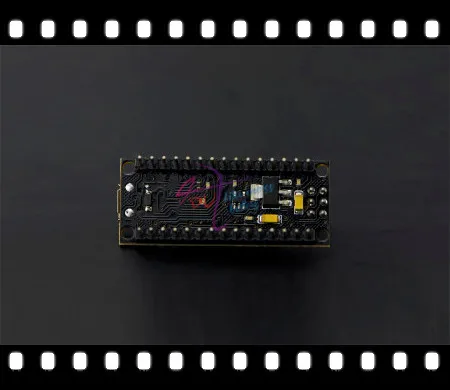

Photos
sui_001sui_002sui_003sui_005
Specification
  • Microcontroller:ATmega32u4
  • Operating Voltage:5V
  • Input Voltage (recommended):6.5-12v (VIN) / 5v (Micro USB)
  • Input Voltage (limits):6.5-12V
  • Digital I/O Pins:21
  • PWM Channels:7
  • Analog Input Channels:6
  • DC Current per I/O Pin:40 mA
  • DC Current for 3.3V Pin:50 mA
  • Flash Memory:32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM:2.5 KB (ATmega32u4)
  • EEPROM:1 KB (ATmega32u4)
  • Clock Speed:16 MHz
  • Compatible with most of Nano shield
  • Size: 45x20x20mm
Shipping List
  • Dreamer Nano V4.1 x1
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.15kg (0.33lb.)
  • Package Size: 8cm x 8cm x 5cm (3.15in x 3.15in x 1.97in)
