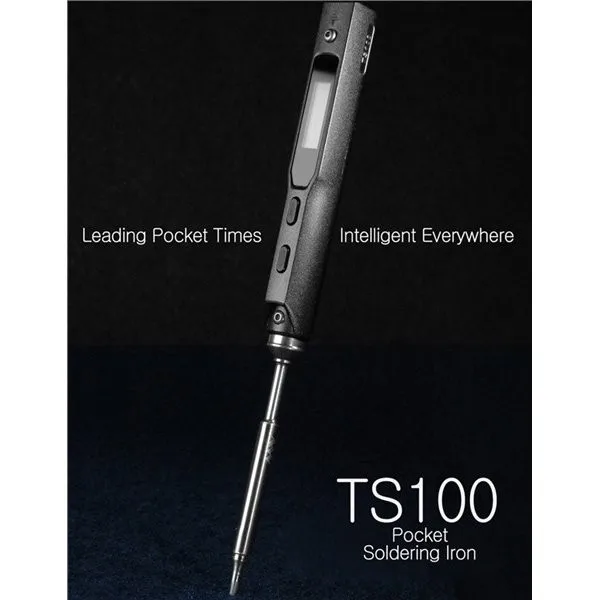

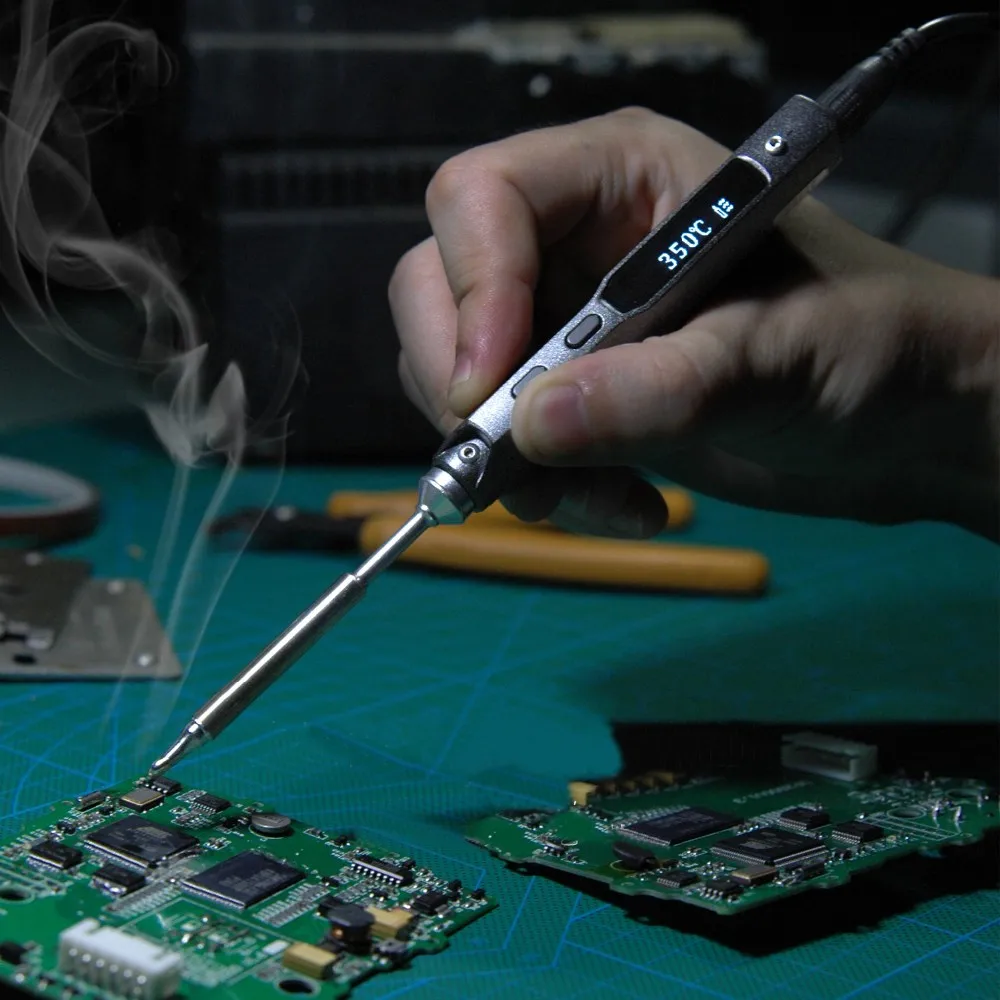

NEW MODEL TS100 Digital OLED Programable Soldering Iron Station
Built-in Acceleration Sensors with STM32 Chip
Embedded Interface DC 5525

2015 New model solder iron station coming! starting sale now!

Have you ever seen this fantastic soldering iron before~
We meet it first time and can\'t wait to introduce to you immediately.

M odel: TS100

Power: 40W

Power: DC12-24V 5.5 * 2.5mm standard interface

The factory default temperature: 300 degrees

Thermostat range: 100--400 degrees

Features:

TS100 mini soldering iron is an intelligent CNC heat iron with lightweight design; easy to dismantle and easy to use; comfortable control handle; high efficiency heating end;simple control interface. It is an essential portable tool for electronic engineers.

It can in DC 12-24V work; OLED display;press button to adjust temperature; external independent power supply.At DC19V 40W state,can heat to 300 Centigrade in 10 seconds.

Control terminal features:

• TS100 based on 304 nested polycarbonate shell;
• Integrated dedicated power supply interface;
• Safety circuit design;

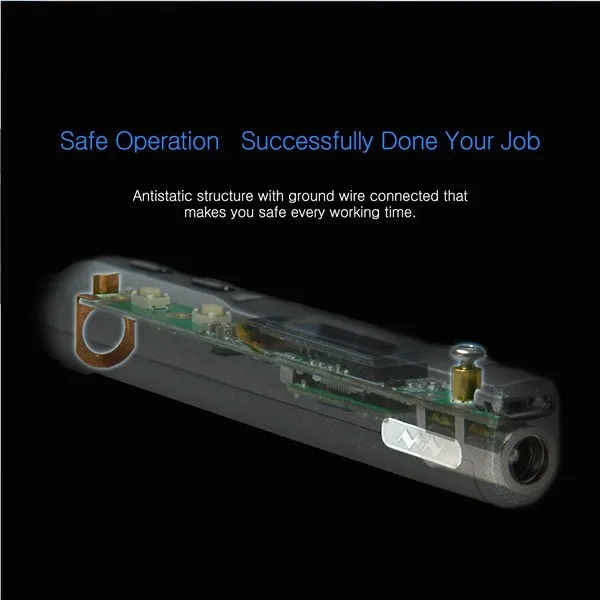

• Electrostatic prevention structure
• Embedded STM32 processor

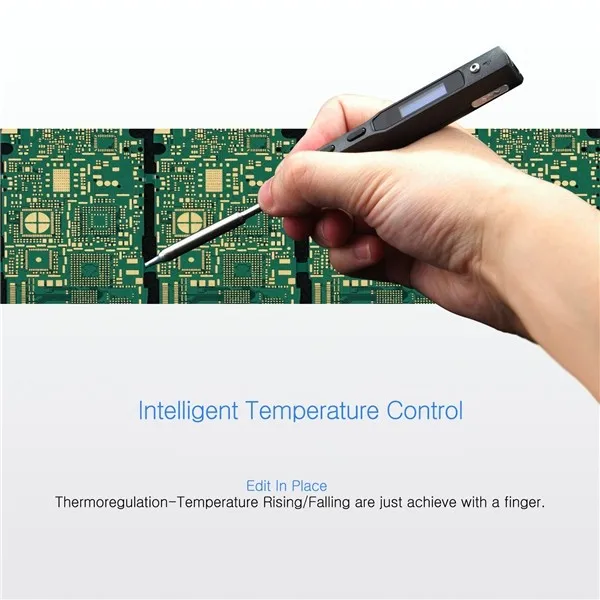

• Dual temperature sensor and acceleration sensor , making TS100 achieve intelligent temperature between 100 and 400 degrees;
• Rapid heat up;
• Automatic sleep;

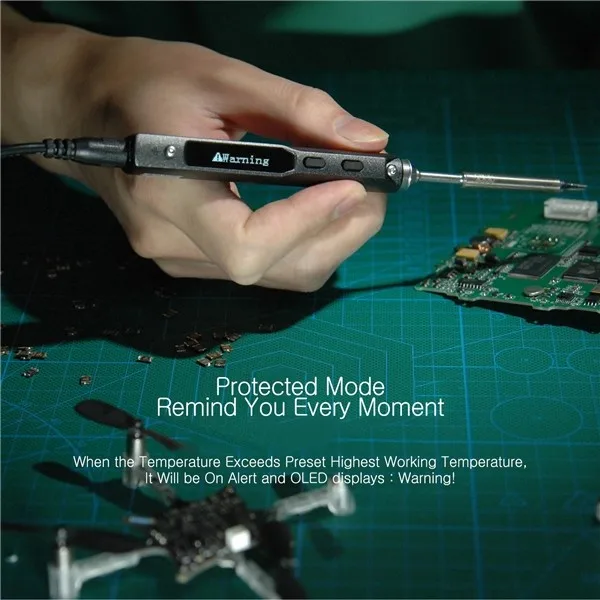

• Over-temperature alarm.

Heat generation terminal features:

• Heat generation terminal is the use of internally heated core,there are 4 kinds of tip optional(TS-K,TS-B2,TS-D24,TS-BC2, we also sell in our store).
• Factory preset temperature: 300 Centigrade
• Temperature stability range: ± 2 %
6530138
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 8cm x 8cm x 5cm (3.15in x 3.15in x 1.97in)
