  • Brand Name: DFRobot
  • Demo Board Type: Others
  • integrated FPGA basic circuit,: such as clock circuit
  • JTAG debugging/programming interface: Yes, onboard
  • XC3S500E: the XILINX Spartan-3E FPGA device
  • Operating Frequency: 50MHz
  • Package: QFP208
  • JTAG interface: for debugging/programming
  • FPGA pins expander: VCC, GND and all the I/O ports
  • Operating Voltage: 1.15V~3.3V
  • LEs: 500K
Product Description

hello,
Your order is under $8, we unified send China Post Ordinary Small Packet Plus.
There is no tracking information, usually arrived in your country is 40-70 days, we don\'t accept the dispute,
If you don\'t wait, it is recommended that the purchase order is more than $8,


Your order is more than $8, we unified make arrangements for your China Post Registered Air Mail,
Have a tracking number query information, general arrived in your country is 25 to 50 days,
Please after receipt of the goods, the products in a 5 star evaluation, thank you for your understanding,

XILINX FPGA XC3S500E Spartan-3E Evaluation Development Core Board + XCF04S FLASH support JTAG= Core3S500E

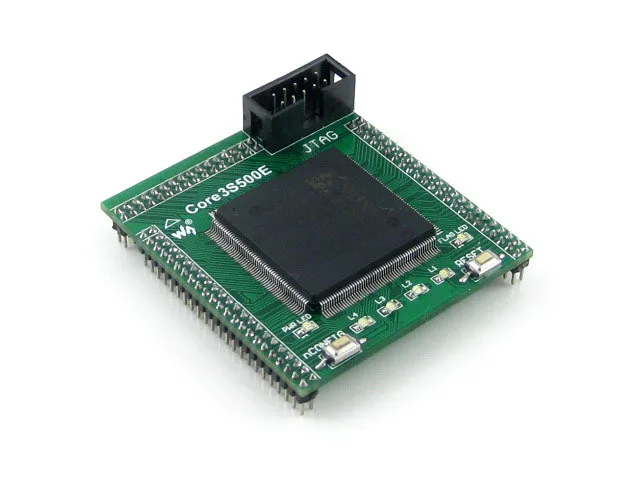

FPGA core board, features the XILINX Spartan-3E chip XC3S500E onboard

Overview

Core3S500E is an FPGA core board that features an XC3S500E device onboard, supports further expansion.
  • onboard 1pcs XCF04S
  • integrated FPGA basic circuit, such as clock circuit
  • onboard nCONFIG button, RESET button, 4 x LEDs
  • all the I/O ports are accessible on the pin headers
  • onboard JTAG debugging/programming interface
  • 2.0mm header pitch design, suitable for being plugged-in your application system

What\\\'s On Board

  1. XC3S500E: the XILINX Spartan-3E FPGA device which features:
  • Operating Frequency: 50MHz
  • Operating Voltage: 1.15V~3.3V
  • Package: QFP208
  • I/Os: 116
  • LEs: 500K
  • RAM: 360kb
  • DCMs: 4
  • Debugging/Programming: supports JTAG
2. AMS1117-3.3 (on bottom side), 3.3V voltage regulator
3. AMS1117-2.5 (on bottom side), 2.5V voltage regulator
4. AMS1117-1.2 (on bottom side), 1.2V voltage regulator
5. XCF04S (on bottom side), onboard serial FLASH memory, for storing code
6. Power indicator
7. LEDs
8. FPGA initialization indicator
9. Reset button
10. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
11. 50M active crystal (on bottom side)
12. JTAG interface: for debugging/programming
13. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion

Photos

Note:
Core3S500E provides JTAG debugging interface, yet does NOT integrate any debugging function, a debugger is required.
Mother board and programmer/debugger in the photos are NOT included in the price.

Debugging/Programming Interface

The Open3S500E FPGA development board integrates JTAG interface for programming/debugging.

Development Resources

The Open3S500E FPGA development board comes with a User Guide CD including development resources listed as below:
  • Related software (Xilinx ISE 12 - supports Winxp/Win7, doesn\\\'t support Win8)
  • Demo code (Verilog, VHDL)
  • Schematic (PDF)
  • FPGA development documentations

Package Contains

  1. Core3S500E core board x
  2. User guide CD x 1
