  • Brand Name: DFRobot
  • Application: for Raspberry Pi 2 Model B
Product Description
DFRobot 100% Genuine Raspberry Pi Advanced Kit for Windows 10 IoT, with Raspberry Pi 2 Model B Borad + Expansion Shield Compatible with Arduino + different sensors and more
Introduction
  • The IoT world is coming, and it\\\\\\\'s going to be even bigger than the internet.
  • If you have a computer, a mouse and a keyboard, you have everything you need to use the internet - BUT, in the IoT world, you are able to add sensors to the mix, bringing you even greater possibilities.
  • This kit includes all the basic IoT sensors modules you will need to start playing with Microsoft Windows 10 IoT and the "Azure" cloud service. In addition, we haved included some extra toys: a USB touch screen, a 9g servo, a PIR sensor, a UV sensor and a USB Camera.
  • Here are a few simple ideas for the projects you can create with this kit:
  • With the USB touch screen, you have a low-cost simple user interface for your project
    • A Servo is the most commonly used actuator in robotics. Combine some servos with a USB camera and you can build a pan and tilt automated home monitoring system that will keep your home and family safe
    • A UV sensor is an excellent tool for a wearable device. Why not make a shirt that can change color based on the light surrounding it?
  • With this advanced sensor kit, youre one step closer to generating interesting and creative ideas using the IoT
    • Advanced Kit for Raspberry Pi 2 with Raspberry Pi
    • Install the windows 10 IoT system into the Micro SD Memory Card

Photos
sui_0sui_2sui_3sui_4sui_5
Features
  • An affordable and user-friendly IoT system
  • Easily available open source code on Github
  • Develop software using Visual Studio 2015
  • Compatible with hundreds of different sensors
Specification

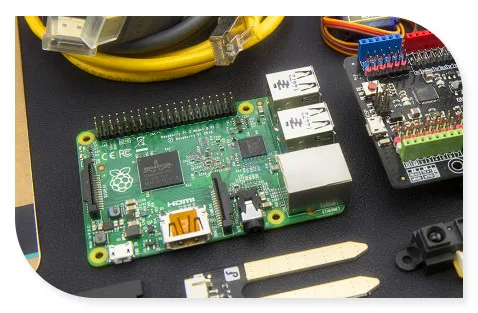

  • Raspberry Pi 2 Model B
    • BCM2836 900MHz quad-core ARM Cortex-A7 CPU
    • 1GB LPDDR2 SDRAM
    • 4 x USB 2.0 Ports
    • Video Out via full HDMI, 3.5mm A/V Jack or Raw LCD interface
    • Audio Out via 3.5mm A/V Jack or Audio over HDMI
    • Audio In via CAMERA interface
    • Storage: micro SD slot
    • 10/100 Ethernet (RJ45)
    • Low-Level Peripherals:
    • 26 x GPIO
    • UART
    • I2C bus
    • SPI bus with two chip selects
    • +3.3V
    • +5V
    • Ground
    • Power Requirements: 600mA up to 1.8A5V via MicroUSB or GPIO Header
  • For Arduino Expansion Shield for Raspberry Pi 2 model B
    • Onboard Microcontroller: ATmega32u4
    • For Arduino Leonardo Chip
    • Compatible with Arduino pin mapping
    • Compatible with All arduino standard shield and sensors
    • System Voltage: 5v
    • For Arduino Digital I/O: 20
    • For Arduino Analog I/O: 6
    • Raspberry Pi B+ GPIO: 16
    • Raspberry Pi B+ I2C: 1
    • Raspberry Pi B+ ID_I2C: 1
    • Raspberry Pi B+ SPI: 1
    • Raspberry Pi B+ TTL UART: 1
Documents
  • Tutorial: Tutorial: //github.com/DFRobot/WindowsIoT/wiki

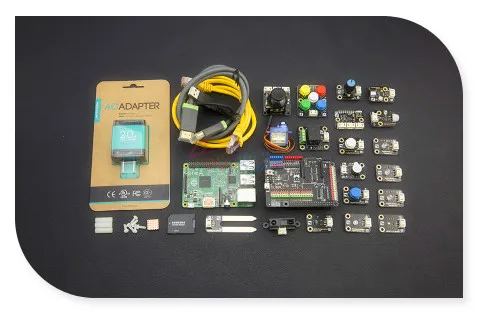

Shipping List
  • Raspberry Pi 2 model B x 1
  • CAT 5 Ethernet Cable (1m Metal Connector) x 1
  • MicroSD Memory Card (16GB Class10 SDHC with Adapter) x 1
  • NILLKIN AC/DC Adapter 5V2A (American Standard) x 1
  • For Arduino Expansion Shield for Raspberry Pi B+ (Compatible with RPi 2 Model B) x 1
  • Self-adhesive Pure Copper Heatsink For Raspberry Pi x 1
  • High Speed HDMI Cable (0.75M, Gold Plated) x 1

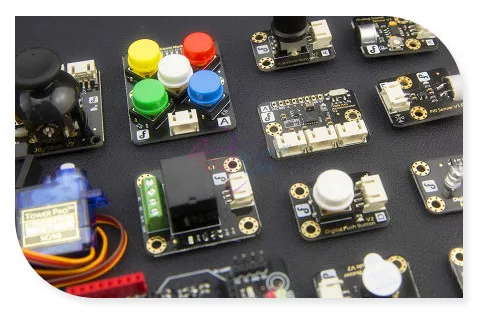

  • Digital Push Button (White) x 1
  • Digital Push Button (Blue) x 1
  • Analog ADKeyboard Module V2 x 1
  • Digital Green LED Light Module x 1
  • Digital RED LED Light Module x 1
  • Digital Blue LED Light Module x 1
  • Analog LM35 Linear Temperature Sensor x 1
  • Analog Rotation Sensor V2 x 1
  • Analog Ambient Light Sensor x 1
  • Analog Sound Sensor x 1
  • Sharp GP2Y0A21 Distance Sensor (10-80cm) x 1
  • Relay Module V3.1 Compatible with Arduino x 1
  • Digital Buzzer Module x 1
  • 9g micro servo (1.6kg) x 1
  • PIR (Motion) Sensor x 1
  • Triple Axis Accelerometer MMA7361 x 1
  • Soil Moisture Sensor (Compatible with Arduino) Immersion Gold x 1
  • Joystick Module V2 x 1
  • We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
  • We will process most order in 48 hours after payment verification and offer tracking no with every Deal(aliexpress only can fill the tracking No after 24 hours).
  • Support WORLDWIDE SHIPPING. (Except some countries and APO/FPO).
  • DHL/Fedex Tracking No Maybe Change after the item arrive Hongkong(eg.we shipped the item on Friday and fill the tracking No,but the tracking No may be Change on Monday if the Parcel arrive Hongkong).
  • SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
  • If you have not received your shipment within reasonable days from payment, please contact us first(pls don\\\\\\\'t put negative feedback before contact us!). We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
  • If The total amount of orders are less than $2, We can only shipped by China Post Ordinary Small Packet Plus!
01Freedback
  • We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important ,We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
  • It is impossible to address issues if we do not know about them!
  • For Russian buyer,pls offer full name as policy requires.
  • For Buyer from Russian Federation,Argentina,Ukraine,Item may ship via China Post Registered Air Mail, Singapore Post, EMS if you choose DHL/Fedex as complex customs declaration process.
  • For Buyer From Brazil, pls offer Tax No is you want to ship via DHL/Fedex,or item will ship via EMS though you choose DHL.
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.72kg (1.59lb.)
  • Package Size: 20cm x 15cm x 12cm (7.87in x 5.91in x 4.72in)
