  • Power: Low Power
  • Name: Waveshare
  • Frequency: Low Frequency
  • Type: SCM
  • Model Number: CoreEP2C5
  • Category: FPGA Core Board
  • For use with: CoreEP3C5 Development & Evaluation
  • Onboard MCU: EP2C5T144C8N
  • Feature 1: 1 x EP2C5T144C8N, nCONFIG button, RESET button, 4 x LEDs
  • Debugging/Programming: supports JTAG
Product Description
Operating Frequency:50MHz
Operating Voltage:1.15V~3.465V
I/Os:79
RAM:120kb
Country of origin:China

Altera Cyclone Board EP2C5 EP2C5T144C8N ALTERA Cyclone II FPGA Evaluation Development Core Board with Full IOs=CoreEP2C5

FPGA core board, features the ALTERA Cyclone II chip EP2C5T144C8N onboard

Overview

CoreEP2C5 is an FPGA core board that features an EP2C5T144C8N device onboard, supports further expansion.

  • onboard Serial Configuration Device EPCS16SI8N
  • integrated FPGA basic circuit, such as clock circuit
  • onboard nCONFIG button, RESET button, 4 x LEDs
  • all the I/O ports are accessible on the pin headers
  • onboard JTAG debugging/programming interface
  • 2.54mm header pitch design

What\\\'s On Board

  1. EP2C5T144C8N: the ALTERA Cyclone II FPGA device which features:
    • Operating Frequency: 50MHz
    • Operating Voltage: 1.15V-3.465V
    • Package: QFP144
    • I/Os: 79
    • LEs: 4.6K
    • RAM: 120kb
    • PLLs: 2
    • Debugging/Programming: supports JTAG
  2. AMS1117-3.3, 3.3V voltage regulator
  3. AMS1117-1.2, 1.2V voltage regulator
  4. EPCS16, onboard serial FLASH memory, for storing code
  5. Power indicator
  6. LEDs
  7. Reset button
  8. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
  9. Power switch
  10. 50M active crystal oscillator
  11. 5V DC jack
  12. JTAG interface: for debugging/programming
  13. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
  14. LED jumpers, short the jumpers to drive the LEDs

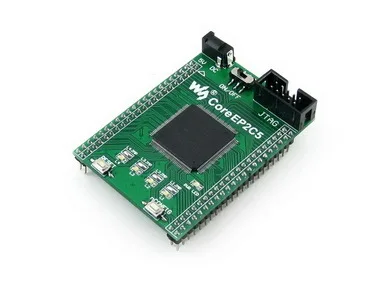

Photos


Note:
CoreEP2C5 provides JTAG debugging interface, yet does NOT integrate any debugging function, a debugger is required.

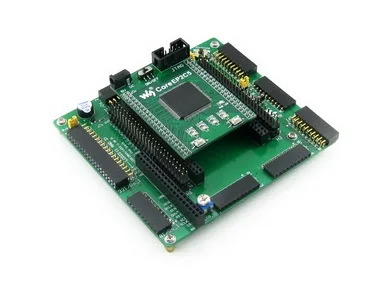

Mother board and programmer/debugger in the photos are NOT included in the price.
