  • Brand Name: DFRobot
  • Demo Board Type: Others
  • BlueNRG low power: low energy Bluetooth network coprocessor
  • balun & harmonic filter: BALF-NRG-01D3
  • Bluetooth: Bluetooth low energy 4.0 master and slave compliant
  • STM32 Nucleo boards: Compatible
  • Arduino UNO R3 connector: Equipped with
  • Very low power consumption: 7.3 mA RX and 8.2 mA TX at +0 dBm
  • Maximum transmission power: +8 dBm
  • Excellent receiver sensitivity: -88 dBm
  • FCC ID: S9NIDB04A1
Product Description

hello,
Your order is under $8, we unified send China Post Ordinary Small Packet Plus.
There is no tracking information, usually arrived in your country is 40-70 days, we don\'t accept the dispute,
If you don\'t wait, it is recommended that the purchase order is more than $8,


Your order is more than $8, we unified make arrangements for your China Post Registered Air Mail,
Have a tracking number query information, general arrived in your country is 25 to 50 days,
Please after receipt of the goods, the products in a 5 star evaluation, thank you for your understanding,

X-NUCLEO-IDB04A1 Bluetooth low energy expansion board based on BlueNRG for STM32 Board Nucleo

X-NUCLEO-IDB04A1, Bluetooth low energy expansion board based on BlueNRG for STM32 Nucleo

Description

The X-NUCLEO-IDB04A1 is a Bluetooth low energy evaluation board to allow expansion of the STM32 Nucleo boards.

It is compatible with the Arduino UNO R3 connector layout, and is designed around BlueNRG, a Bluetooth low energy, low power network coprocessor compliant with BTLE 4.0 and the BALF-NRG-01D3, an ultra miniature balun optimized for ST BlueNRG RF IC, which integrates matching network and harmonics filter. The X-NUCLEO-IDB04A1 interfaces with the STM32 MCU via SPI pin, and the user can change the default SPI clock, the SPI chip select and SPI IRQ by changing one resistor on the evaluation board.

The excellent performance of BlueNRG and the best matching between BlueNRG and BALF-NRG-01D3, X-NUCLEO-IDB04A1 passed the RF TEST for Japan Radio Law certification with higher margin above the specification values as well as it is FCC certified (FCC ID: S9NIDB04A1).

Key Features

  • BlueNRG low power, low energy Bluetooth network coprocessor
  • BALF-NRG-01D3 balun & harmonic filter
  • Free comprehensive development firmware library and example for BlueNRG, compatible with STM32Cube firmware
  • Bluetooth low energy 4.0 master and slave compliant
  • Compatible with STM32 Nucleo boards
  • Equipped with Arduino UNO R3 connector
  • Very low power consumption: 7.3 mA RX and 8.2 mA TX at +0 dBm
  • Maximum transmission power: +8 dBm
  • Excellent receiver sensitivity (-88 dBm)
  • X-NUCLEO-IDB04A1 is FCC certified (FCC ID: S9NIDB04A1)
  • X-NUCLEO-IDB04A1 is officially certificated as a BTLE 5mW module for Japan Radio Law TYPE Certification by Japan government
  • RoHS compliant

Photos

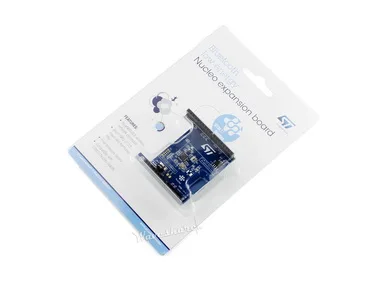

X-NUCLEO-IDB04A1 Packaging

X-NUCLEO-IDB04A1 Packaging Back View

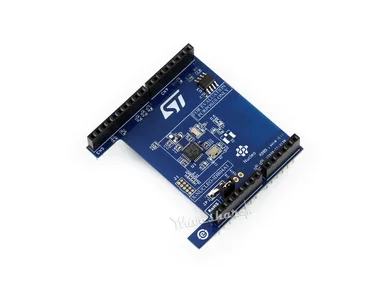

X-NUCLEO-IDB04A1

X-NUCLEO-IDB04A1 Back View

X-NUCLEO-IDB04A1

X-NUCLEO-IDB04A1 Back View

What\\\'s Onboard

Application Diagram

Working with an STM32L MCU :

Development Resources

  • User manual
  • Schematic
  • Demo code
  • Development software

Wiki : waveshare.com/wiki/X-NUCLEO-IDB04A1

Package Contains

  1. X-NUCLEO-IDB04A1 × 1
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.13kg (0.29lb.)
  • Package Size: 20cm x 18cm x 10cm (7.87in x 7.09in x 3.94in)
