  • Brand Name: BINYEAE
  • is_customized: No
Product Description

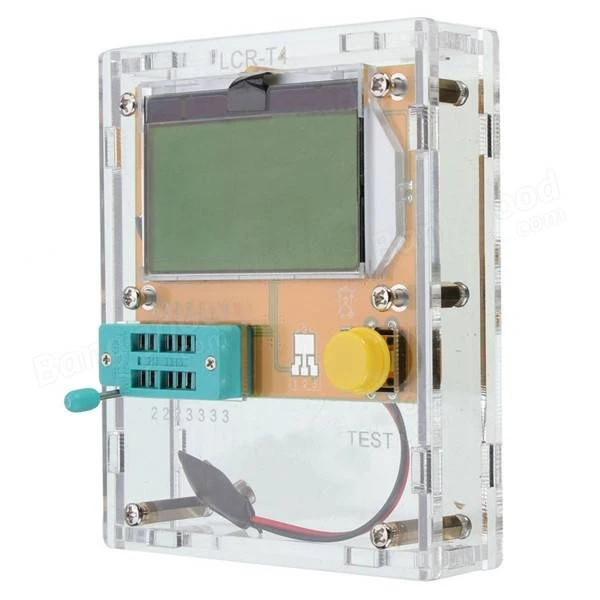

LCR-T4 Transistor Tester Diode Triode LCD ESR Meter Inductance With Housing

Features:

1. Add boot voltage detection function.
2. Automatic detection of NPN and PNP transistors, N -channel and P-channel MOSFET, diodes (including dual diode), thyristors, transistors, resistors and capacitors and other components.
3. Automatic test out the pin element and displayed on the LCD.
4. Can be detected to determine the transistor emitter forward bias voltage of the transistor, MOSFET protection diode and the amplification factor of the base.
5. Measure the gate threshold voltage and gate capacitance of the MOSFET.
6. 1602 lcd display uses LCD (12864 LCD with backlight).
7. High test speed, valid component test: 2 seconds (except in the larger capacitor of large capacitance measurement also takes a long time, the measured time of one minute is normal).
8. One button operation, power-on test, get a key.
9. Power consumption off mode: less than 20 nA.
10. Auto power off function to avoid unnecessary waste, saving battery power, improved battery life.

Specification:

Resistor: 0.1ω-50Mω
Capacitor: 25pF-100000uF
Inductance: 0.01mH - 20H
Working power: DV-9V
Standby current: 0.02uA
Operating current: 25mA
Size: 105mm x 87 x 28.6mm/4.1 x 3.4 x 1.1 inch

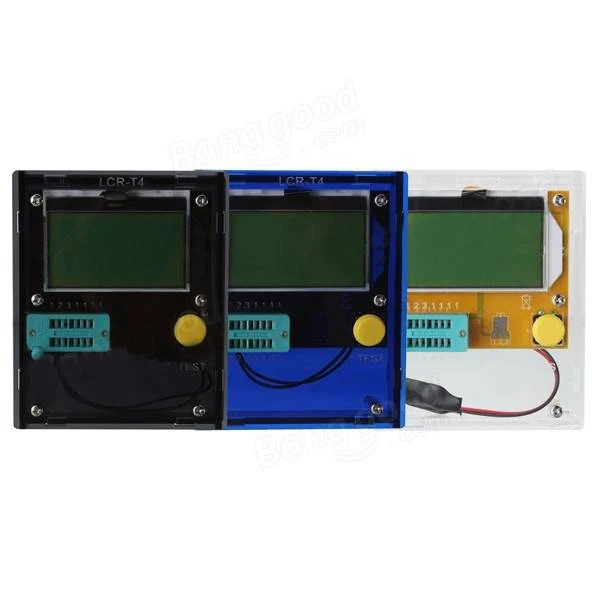

Housing Color: Blue Clear Black for your option

Package included:

1 x LCR-T4 Transistor Tester Diode Triode LCD ESR Meter Inductance With Housing (not Battery )

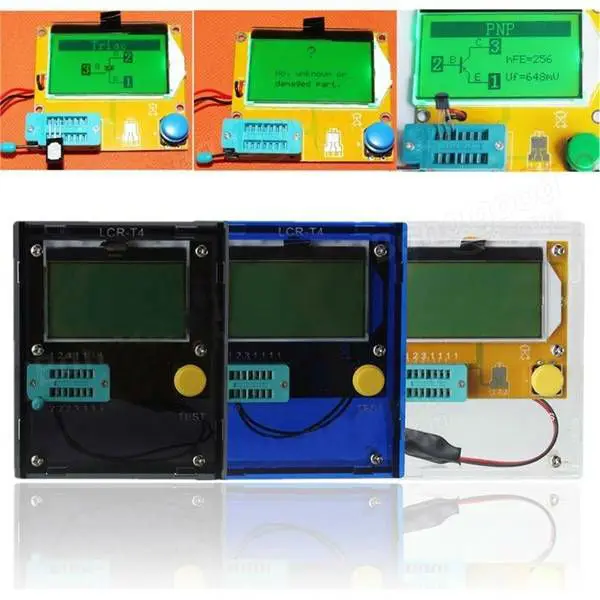

Details pictures:
44fe8398-a723-6fd9-9fd7-6a19e0cf08d4635e82bf-72d5-5c1d-a022-811712cd629ba0029989-0066-2751-45dc-74c0449bb37ce9aa53a7-1bef-59bb-25a4-a6bc8c332757fa21eb6d-5fc1-c007-0e75-cda08ac9b1496b1b0edd-a612-b30b-03e3-49d4815bcca0



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.35kg (0.77lb.)
  • Package Size: 10cm x 5cm x 2cm (3.94in x 1.97in x 0.79in)
